| MODEL NO. | RTC-4040C | RTC-4045C | RTC-5055C | RTC-6055C | RTC-5070C | RTC-8070C | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Lines | 4 | 4 | 5 | 6 | 5 | 8 | ||||||||||||||
| Fluid | Hydraulic Oil, Air, Cutting Fluid | |||||||||||||||||||
| Max. Operating Pressure | 150kgf/㎠ | |||||||||||||||||||
| Max. Revolutions per Minute | 120rpm | |||||||||||||||||||
| Operating Temperature Range | 0~70℃ | |||||||||||||||||||
| Weight | 1.3 kg | 1.4 kg | 2.33 kg | 2.41 kg | 3.79 kg | 4.58 kg | ||||||||||||||

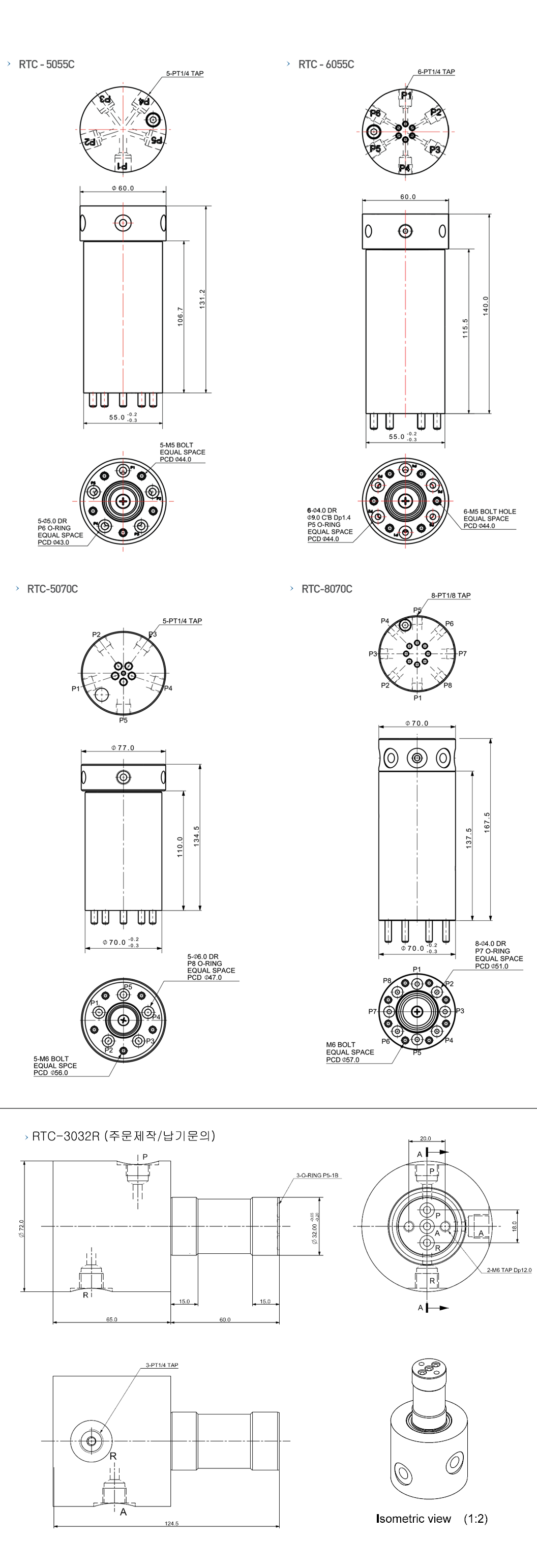

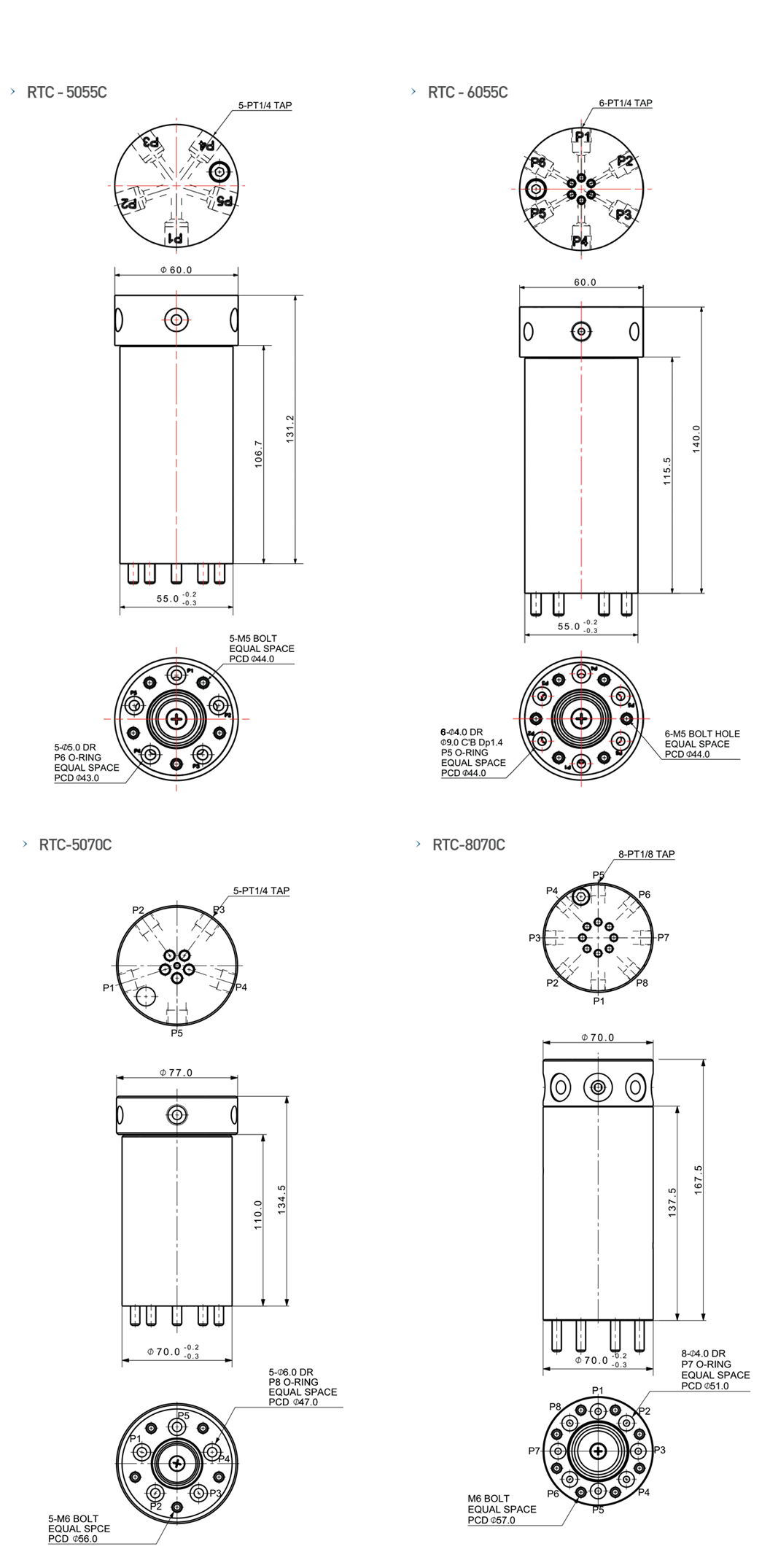

| Download | 2D | 3D | 2D | 3D | 2D | 3D | 2D | 3D | 2D | 3D | 2D | 3D | ||||||||
 |
 |
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
